Detailed Description

The router-dealer combination allows for asynchronous clients interacting with asynchronous servers.

We now quickly overcome the shortcomings of the Request-Reply pattern. As will be a theme, this is accomplished by introducing a proxy.

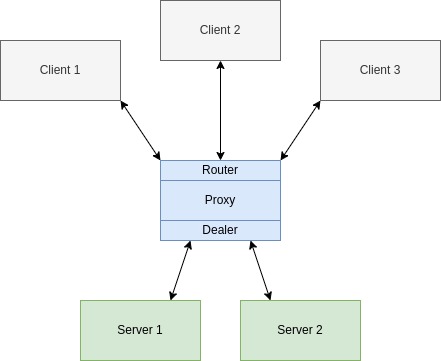

The router-dealer pattern. Here, three clients submit requests, which are shepharded from the router frontend to the dealer backend, the requests are sent to a server which responds. The router-dealer then unwinds the request logic and delivers the appropriate response to the appropriate client.

The proxy now consists of a router frontend to which clients connect and a dealer backend to which servers connect. The router socket can accept an arbitrary number of client connections and the dealer socket can accept an arbitrary number of server connections. Moreover, the messaging is asynchronous which means the framework can handle multiple non-blocking requests from a client and multiple non-blocking responses from a server. Of course, whether your application's logic can handle that is another thing - but the option is on the table if you want to explore it.

In more detail, the clients requests are handled using a fair-queuing strategy. The proxy distributes work via the dealer which uses a round-robin load-balancing strategy. When the computational work in requests and backend hardware are approximately equal this is a very good strategy. Though it is possible to implement a custom proxy that performs whatever type of load balancing you desire. The grand irony is even though ZeroMQ would imply no message queues, with only about 20 lines of code UMPS provides a light-weight, highly-scalable solution that is leveraged by all of our machine-learning inference algorithms to support real-time and post-processing.

An Example

In this example, three clients will interact with two servers by way of the router-dealer proxy.

The Server

The server behaves very much like a simple request-reply backend. A server connects to the backend, provides UMPS with a processing functions, and responds to requests. This particular server has been hardened to better deal with invalid messages and processing errors by way of the generic UMPS failure message and try-catch statements. This is because the server logic must be robust and resilient to error so as not to crash the backend.

#include <iostream>
#include <thread>
#include <umps/messageFormats/failure.hpp>
#include <umps/messaging/routerDealer/reply.hpp>
#include <umps/messaging/routerDealer/replyOptions.hpp>
#include "routerDealer.hpp"
#include "messageTypes.hpp"

namespace
{

class MessageProcessor
{
public:
    explicit MessageProcessor(int identifier) :
        mIdentifier(identifier)
    {
    }
    [[nodiscard]]
    std::unique_ptr<UMPS::MessageFormats::IMessage>
        process(const std::string &messageType,
                const void *messageContents, const size_t length)
    {
        UMPS::MessageFormats::Failure failureMessage;
        // Handle a request message
        ::RequestMessage request;
        if (messageType == request.getMessageType())
        {
            ::ReplyMessage response;
            // Deserialize the message
            try
            {
                request.fromMessage(
                    reinterpret_cast<const char *> (messageContents), length);
            }
            catch (const std::exception &e)
            {
                failureMessage.setDetails("Server "
                                        + std::to_string(mIdentifier)
                                        + " failed to deserialize message");
                return failureMessage.clone();
            }
            // Process the message and set the result
            mResponses = mResponses + 1
            response.setContents("Server " + std::to_string(mIdentifier)
                               + " handling message: " + request.getContents());
            // Send the reply back
            return response.clone();
        }
        // It's unclear what type of request was received.  Send a generic
        // failure message back to the client.
        failureMessage.setDetails("Server " + std::to_string(mIdentifier)
                                + " encountered unhandled message type "
                                + messageType);
        return failureMessage.clone();
    }
    [[nodiscard]] int getNumberOfResponses() const
    {
        return mResponses;
    }
private:
    int mIdentifier{0};
    int mResponses{0};
};

}

void server(int instance)
{
    // UMPS will require the backend to have the ability to respond to messages.
    ::MessageProcessor messageProcessor(instance);

    // Create the replier options
    UMPS::Messaging::RouterDealer::ReplyOptions options;
    options.setAddress("tcp://127.0.0.1:5556");
    options.setCallback(std::bind(&MessageProcessor::process,
                                  &messageProcessor,
                                  std::placeholders::_1,
                                  std::placeholders::_2,
                                  std::placeholders::_3));

    // Initialize the replier service
    UMPS::Messaging::RouterDealer::Reply server;
    server.initialize(options);

    // Start the server
    auto replierThread
        = std::thread(&UMPS::Messaging::RouterDealer::Reply::start, &server);

    // Main thread sleeps for a bit.
    std::this_thread::sleep_for(std::chrono::seconds {2});

    // Shut down the replier thread.
    server.stop();
    std::cout << "Server instance " << instance << " handled "
              << messageProcessor.getNumberOfResponses()
              << " requests" << std::endl;

    // Join threads
    if (replierThread.joinable()){replierThread.join();}
}

The Client

Similarly, the client behaves very much like a simple request-reply client. It submits a request and waits for a reply. This particular client has been hardened to deal with different types of failure (invalid request messages, server processing errors, and request time-outs). Typically, this logic would be embedded in a custom, application-specific client class.

#include <iostream>
#include <string>
#include <umps/messageFormats/failure.hpp>
#include <umps/messageFormats/messages.hpp>
#include <umps/messaging/routerDealer/request.hpp>
#include <umps/messaging/routerDealer/requestOptions.hpp>
#include <umps/messageFormats/staticUniquePointerCast.hpp>
#include "routerDealer.hpp"
#include "messageTypes.hpp"

void client(int instance)
{
    // Define the message types that the client will receive
    UMPS::MessageFormats::Messages messageTypes;
    std::unique_ptr<UMPS::MessageFormats::IMessage> replyMessageType
        = std::make_unique<::ReplyMessage> ();
    std::unique_ptr<UMPS::MessageFormats::IMessage> failureMessageType
        = std::make_unique<UMPS::MessageFormats::Failure> ();
    messageTypes.add(replyMessageType);
    messageTypes.add(failureMessageType);

    // Define the subscriber options
    UMPS::Messaging::RouterDealer::RequestOptions clientOptions;
    clientOptions.setAddress("tcp://127.0.0.1:5555"); // Connect to this address
    clientOptions.setReceiveTimeOut(std::chrono::milliseconds {500});
    clientOptions.setMessageFormats(messageTypes);

    // Initialize the subscriber
    UMPS::Messaging::RouterDealer::Request client;
    client.initialize(clientOptions);

    // Process some requests
    for (int i = 0; i < N_REQUESTS; ++i)
    {
        ::RequestMessage request;
        request.setContents("Request from instance "
                          + std::to_string(instance));
        auto reply = client.request(request);
        if (reply != nullptr)
        {
            ::ReplyMessage replyMessage;
            if (reply->getMessageType() == replyMessage.getMessageType())
            {
                auto replyMessage
                     = UMPS::MessageFormats::static_unique_pointer_cast
                             <::ReplyMessage> (std::move(reply));
                std::cout << "Reply thread " << instance << " received reply: "
                          << replyMessage->getContents() << std::endl;
            }
            else
            {
                std::cout << "Server reply to client " << instance
                          << " encountered problems." << std::endl;
            }
        }
        else
        {
            std::cout << "Reply to " << instance << " timed out." << std::endl;
        }
    }
}

The Proxy

The API of the router-dealer proxy behaves very much like the proxy you encountered xPub-xSub section. However, the behind-the-scenes logic of this proxy is very different from the xPub-xSub proxy.

#include <thread>
#include <chrono>
#include <umps/messaging/routerDealer/proxy.hpp>
#include <umps/messaging/routerDealer/proxyOptions.hpp>

using namespace UMPS::Messaging::RouterDealer;

void proxy()
{
    ProxyOptions proxyOptions;
    // Data flows from frontend to backend
    proxyOptions.setFrontendAddress("tcp://127.0.0.1:5555"); // Clients connect here
    proxyOptions.setBackendAddress("tcp://127.0.0.1:5556"); // Servers connect here

    // Create the proxy
    Proxy proxy;
    proxy.initialize(proxyOptions);

    // Run the proxy in a separate thread
    auto proxyThread = std::thread(&Proxy::start, &proxy);

    // Main thread sleeps a bit
    std::this_thread::sleep_for(std::chrono::seconds {3});

    // The main thread tells the proxy to shut down
    proxy.stop();
    proxyThread.join();
}
